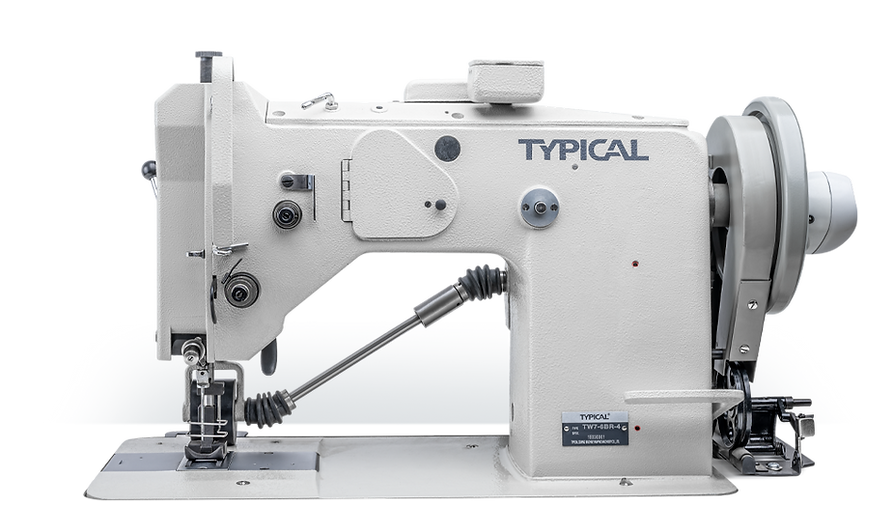

TYPICAL TW7-6B // TW7-6BR
Extra heavy-duty zig zag lockstitch sewing machine
Field of applications
Backpack
Hiking shoes
Classic shoes
Boots
Tents
Features & Technical data
TW7-6B // TW7-6BR
» Heavy duty zig-zag sewing machine
» Extra large rotating hook for extreme thick threads
» XL bobbin 34x14 mm for extra large bobbin thread capacity
» Zig-zag overstitch width up to 12.7 mm
» Stitch type 301
» Max. sewing speed 700 spm.
» Max. stitch length 7.5 mm
» Effective handwheel diameter 130 mm
» Needle stroke 50.8 mm
» Zig-zag stitch type -716/04, 3-stitch TW7-6B-3//TW7-6BR-3
» Zig-zag stitch type -716/06, 4-stitch TW7-6B-4//TW7-6BR-4
Max. sewing speed
700* spm
​
Max. stitch length
7.5 mm
​
Transport types
Drop feed
​
Max. Zig zag width
12.7 mm
​
Zig zag types
TW7-6B
TW7-6BR
Zig zag types
TW7-6B-3
TW7-6BR-3
Zig zag types
TW7-6B-4
TW7-6BR-4
Needle system
DDxH14
​
Needle size
200** Nm
​
Max. thread thickness
8/3**
​
Horizontal hook
Extra large rotating hook
Stitch type
301 (Lockstitch)
​
Needle stroke
50.8 mm
​
Clearance under the arm
254 x 195 mm
​
Clearance under sewing foot
10 / 14
​

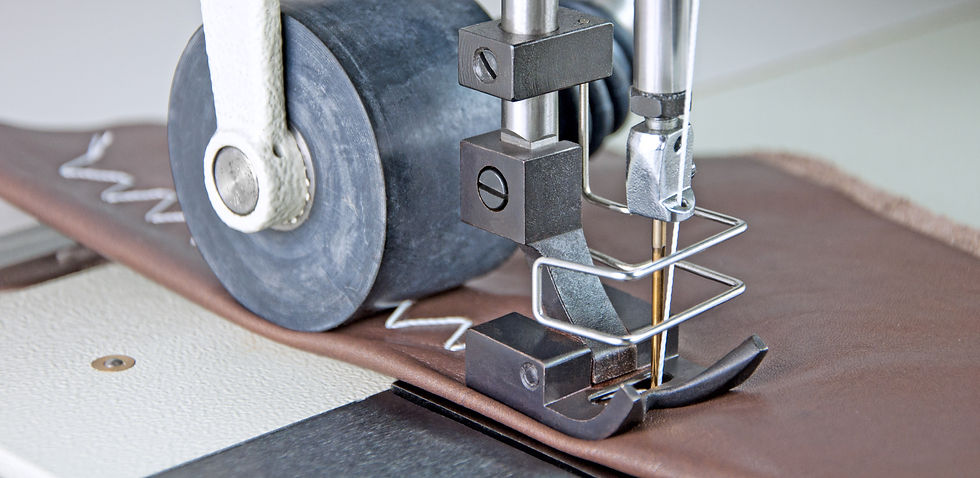

Puller transport
TW7-6BR (-3/-4)
​
Material thickness
HX
​
* Depending on process
** Depending on version
