TYPICAL TC1310GB // TC1510GB
Electronic direct-drive lockstitch pattern sewing machine
Illustration TC1310GB 01A/CH with Sliding device
Field of applications
Men Jacket
Women Jacket
Trousers
Jeans
Backpack
Gloves
TC1310GB 01A/CH with Sliding device
Features & Technical data
TC1310GB // TC1510GB
» TC1310GB 01A/CH with sliding device for sewing on labels
» Stepper motor controlled clamp, different lifting heights are programmable (TC1310GB-S)
» Stepper motor controlled thread tension (option)
» Flip clamp for sewing on labels (TC1310GB-02FZ)
» Integrated Direct-Drive
» Intermittent transport
» High precision stepper motors (X/Y) control for very accurate seams, stitch length from
0.05 –12.7 mm programmable
» Integrated powerful direct-drive (230 V, 550 W) with increased torque
» CB-hook for increased stitch quality up to thread N° 20/3
» Automatic thread cutter and thread wiper for a neat seam start
» Oil-free needle, no oil stand on material
» Thread ends after cutting about 2.0–2.5 mm
» Presserfoot height programmable for excellent seam quality even at cross seams
» Upper thread breakage identifi cation with automaticsewing stop
» 512 sewing pattern a total of 20,000 programmable stitches
» Data transfer by USB
» Full automatic lubrication system
Max. sewing speed
2.700* spm
​
Max. stitch length
0.1-12.7 mm
​
Foot lift bar tacker
17.0 mm
​
Needle system
134x17/ DPx17
​
Needle size
90-140** Nm
​
Shuttle hook
Bobbin 23x13 mm
​
Max. thread thickness
20/3**
​
Sewing area
TC1310 130 x100 mm
TC1510 150 x100 mm
Stitch type
301 Lockstitch
​
Clamp lift
17.0 mm
​
Thread wiper
•
​
Thread trimmer
•
​
Drive
Direct drive
​
Material thickness
L/M
​
* Depending on process
** Depending on version
Control panel
Touchscreen display for creation and administration of sewing programs
Bobbing thread winding function at the push of a button. The optimum position for needle threading will be approached after pushing the button. Clamp drops down, needle thread tension will open
​512 sewing pattern a total of 20,000 programmable stitches
Import or export of sewing programs via USB stick

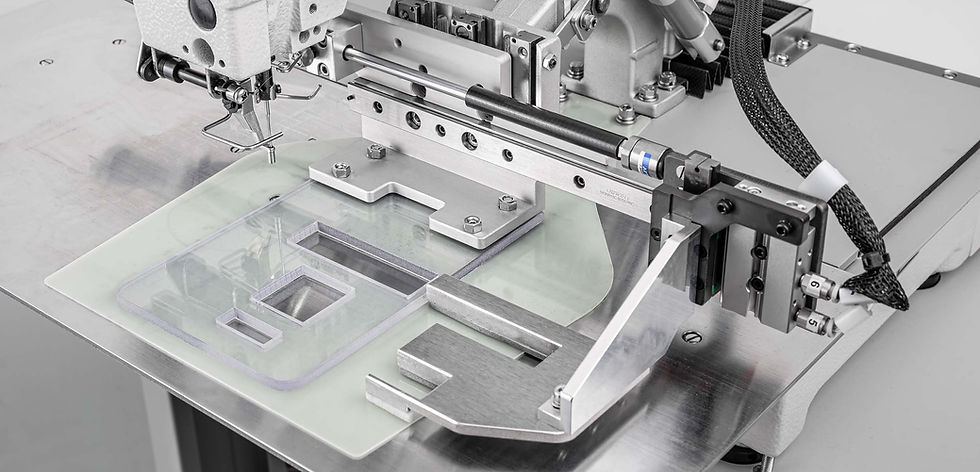

Electronic direct-drive lockstitch pattern sewing machine with stepper motor controlled thread tension (option) and sliding device.
Equipped with a transparent template for knitwear and various label sizes.
