Vetron 5000A-10-12
Direct-drive 1-needle lockstitch sewing machine with triple transport.
On every Page
Only showing if longDescription
not empty
Field of applications
On every Page
Text only showing if bg1Title not empty
If addonSection: Classic

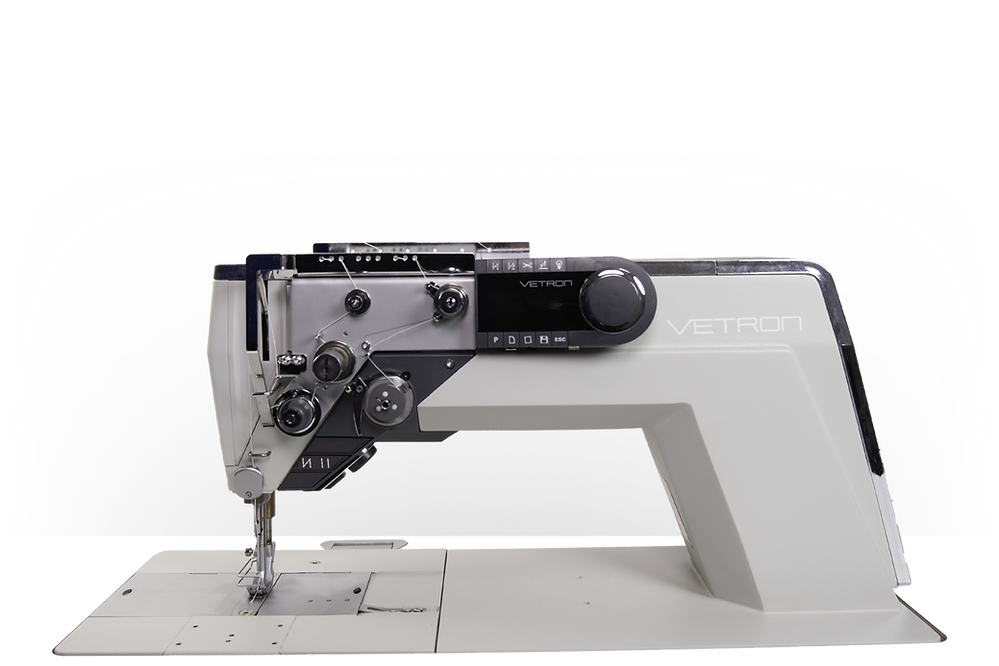

VETRON STARTING THE CLASSIC SERIES
The VETRON 4000 series has been designed as a modern, fully equipped, mechanical industrial sewing machine for use in medium to heavy-duty applications and complements the portfolio with a classic industrial sewing machine in addition to the VETRON 5000 series.
With an exceptionally high stitch quality, it is perfectly suited for topstitching work in the visible area, as well as for assembling seams for use in automotive and upholstery production.
Equipped with a thread trimmer, thread clamp for a clean seam beginning. Switchable, second tension, second stitch length and top feed stroke. Recallable via the switch bar in the arm of the machine. With the built-in LED sewing light and an integrated touch control panel in the machine arm, the VETRON 4000 series offers all the features of a modern, classic industrial sewing machine.
Other features include are a powerful main drive and low-noise, low-vibration operation due to aluminum arm and head covers.
The sewing gauge parts set of the VETRON 4000 series is identical to the VETRON 5000 series and can therefore be used as an original part in VETRON quality for all VETRON series. As a result, the VETRON 4000 series fits easily into the VETRON range and is an ideal operating resource and reliable partner.
If addonSection: Hightech
High tech as standard
Through the consistent use of state of the art electronic control it became possible to make all machine settings programmable into memory and thus recallable.
This allows the process parameters to be free from operators influence and identical every time the program is recalled. The innovative dynamic machine parameter, based on the actual speed and the permanent measurement of the material thickness, open new possibilities of production quality, process security and the reduction of cycle times.
Bool: programmableSetup
Process Reliability
User identification via USB dongle (activated via parameters).
Operator has no access to basic parameters.
Different access levels for Operator / Line Supervisor / Technican / Technical Supervisor (Administrator).
Programmable Setup
All machine settings are programmable and storable.
Fast and precise setup of the machine by recall of a stored machine program.
Easy to understand and intuitive programming concept.
Program chain function to combine different production steps directly on one machine.
User identification by USB-dongle to avoid access on machine settings - on demand.
Features & Technical data
On every Page
5000A-10-12
- » New HoHsing Motor and control
- » New needle thread tension device
- » Re-designed top-feed regulator
- » Optimized bobbin case opener
- » Very high stitch quality for top-stitching work in the visible areas and for assembly seams
- » Selective with big vertical hook (bobbin diameter 26 mm) or extra large hook (bobbin diameter 32 mm)
- » Automatic top-feed-stroke adjustment
- » Automatic adjustment of presser foot pressure
- » Controlled needle thread tension
- » Electric driven bobbin winder
- » Electronic hand wheel
- » Automatic thread cutter for threads up to 10/3; thread ends ~13 mm
- » Integrated LED sewing light
VETRON 4000 // 4010
* Depending on process
** Depending on version
If addonSection: Classic
Control Panel P107
Simple operation - easy to remove
The control panel concept P107 is one of the new generations of control panels. It guarantees easy operation with simple navigation.
In the automotive production is this operating concept ideally suited for setting the sewing parameters and sewing programs / sequences. The control panel is simply removed after setting - the operator can no longer intervene in the sewing parameters.
VETRON TOUCH 4.0 represents the digital addition to your VETRON sewing machine and is the upgrade to the previous v_sion control panel. The original sewing machine control panel with keys and rotary wheel is replaced by a clear and intuitive touch display that is connected directly to the machine control.
The VETRON TOUCH 4.0 takes over all previous functions of sewing machine operation and additionally enables the integration of digital content to support the user (for example operating instructions with photos / videos).
The seam designer supports the definition of chain programs. It visualizes the programs in the display field, additional events can be integrated between the seam sections. The current seam section is highlighted in the display field during sewing.
User access management enables the assignment of rights to different user groups.
The system history records data that can later be used for precise production analysis or accurate trouble shooting.
Service personnel are supported in their work by the digital content and the setup wizard. Predictive maintenance functions help minimize down time and prevent failures.
More ease of use is impossible
Every operating element in the direct handle area
Electronic bobbin winder
Forward/backward selection key
Electronic hand wheel
Programmable button
Safety button
Forward/backward slider
on every Page where category != ultrasonic
Always fit to the application
Gauge part sets and accessories
As a supplement to the sewing machine series, VETRON also offers standard sewing accessories & tools.
In addition, the manufacture of special accessories is possible according to individual customer requirements.
on every Page where category == ultrasonic
Always fit to the application
Accessories
In addition to the ultrasonic machine range VETRON offers a wide variety of anvil wheels from serial production.
Over and above, the production of every imaginable special anvil wheel for example with the customer’s logo is possible.
All informations in one place!
Direct download
on every Page
Here you can find all information about the machines in one place!
Are you looking for the right operating or programming instructions?
With the direct download you have access to all information. Would you like to see the machine in action? Visit our Youtube Channel. Is the corresponding machine not yet online, so contact us. We will produce a product film to the machine as soon as possible.
